PowMr 3000W Solar Inverter Review: Complete Setup & Real-World Performance

Looking to upgrade your off-grid or hybrid solar system? The PowMr 3000W 24V solar inverter charger might be the all-in-one powerhouse you need. With charging capabilities from both solar panels and AC input, this unit promises versatility, performance, and reliability for serious solar DIYers. This post explores how it works, how to wire it, and what makes it worth considering for your solar journey.

This inverter does more than just convert DC to AC:

• It charges batteries using either solar PV input or grid AC power.
• It outputs 3000W of power—ideal for mid-sized systems.
• Supports a 24V battery bank and charges up to 80A (PV) or 40A (AC).

The system is great for:

• DIY off-grid cabins
• RVs and mobile workshops
• Grid-tied backup systems with battery storage

With both AC-in and PV-in options, it flexes to your environment.

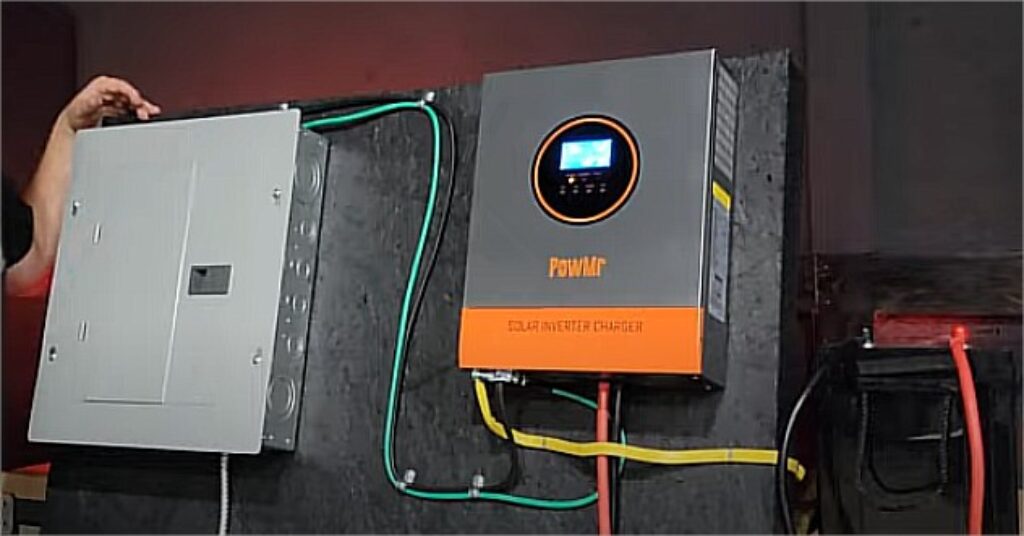

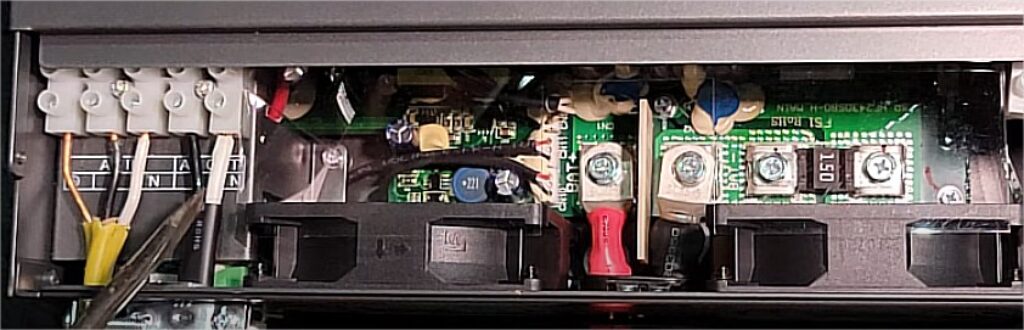

Wiring the PowMr 3000W is relatively straightforward:

• Battery connects to inverter with 2-gauge wire.
• AC-in (20A) uses standard plug—neutral, line, and ground clearly marked.

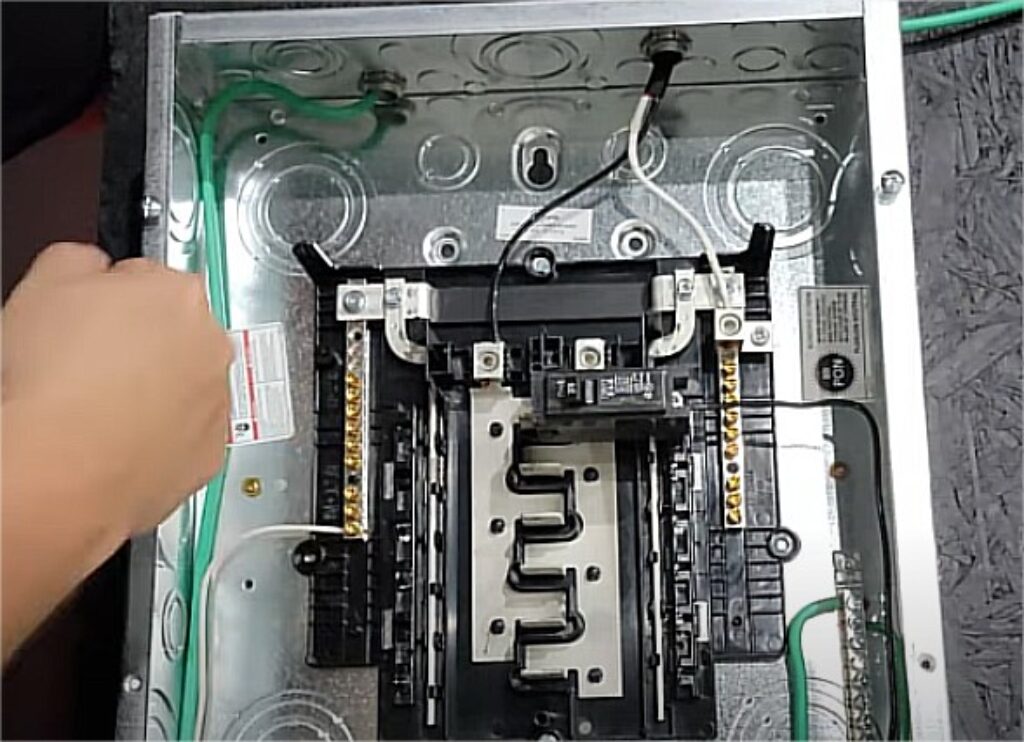

• AC-out connects to a breaker-protected load center, powering outlets.

Key wiring insights:

• Maintain one ground-neutral bond per system.
• Treat your setup like a sub-panel when tied to a larger grid.
• Add a separate grounding lug if needed to avoid bonding conflicts.

This ensures electrical safety and stable performance.

Before mounting, check your clearances:

• Height: 14.125″
• Width: 11″
• Depth: 4″ (add 0.75″ with mounting bracket)
• Weight: 17.6 lbs

Installation tips:

• Allow 20″ clearance above/below and 8″ on each side.
• Use 10-gauge AC wires minimum.
• PV inputs should be 12-gauge (red and black).

The inverter’s MPPT controller accepts:

• Up to 4000W max solar input
• 120V–400V MPPT range
• 450V open-circuit voltage max

This allows for flexible array sizing. While this video didn’t show the PV system live, the setup is compatible with most panel configurations that meet these voltage requirements.

Display features:

• Real-time AC and battery indicators
• Visual alerts (flashing lights) when AC-in is absent
• Monitoring for input/output wattage, charge amps, and battery levels

You can also add a Wi-Fi module for remote monitoring and control via app.

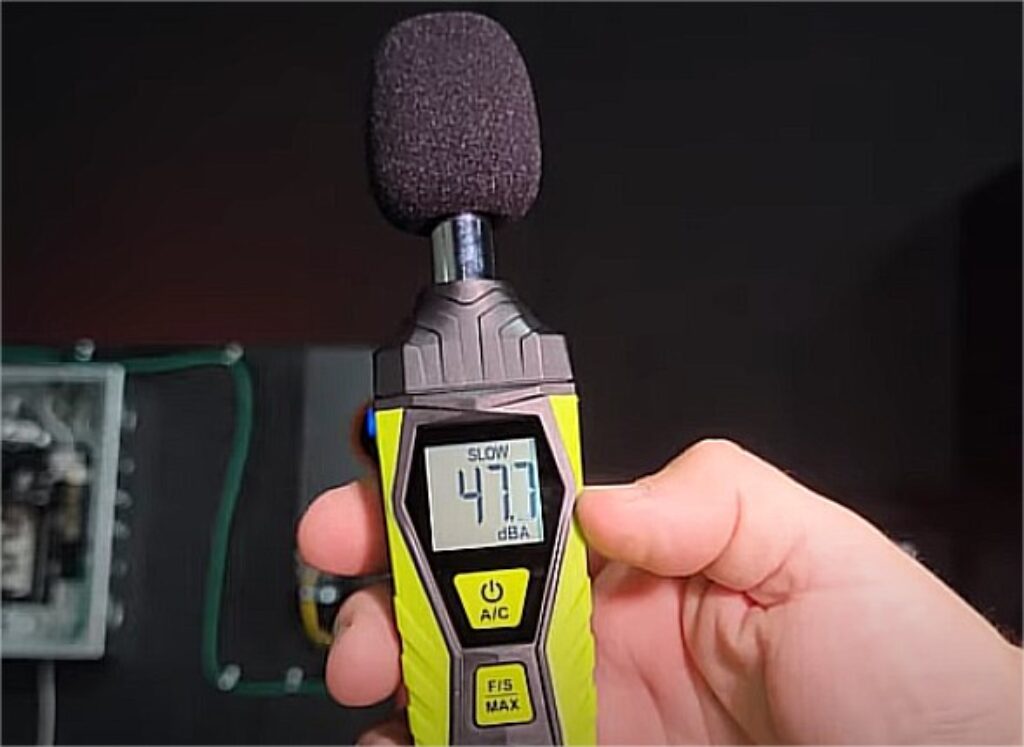

The unit runs quietly:

• Idle DB level: ~47
• Under load: ~52–56 DB (at 1 ft)
• At ~6 ft: ~40s DB range

This makes it suitable for indoor use where noise could be a concern. One standout feature: instant bypass switching. When the AC line is disconnected, it shifts to battery power without any appliance interruption.

During testing:

• A 1700W heat gun and a 360W shop fan ran smoothly.
• Power draw displayed accurately (~1140W+).
• Battery recharged quickly via 40A AC charger.

The PowMr 3000W isn’t your average plug-and-play inverter. It offers deep customization, rapid charging, and reliable performance—but it’s best suited for users with a solid grasp of solar setups.

Whether you’re designing a full off-grid system or just want reliable backup power, this inverter checks a lot of boxes. Combine it with a strong battery bank and well-designed solar array, and you’ve got a dependable energy solution.

Key Specs Recap:

• Inverter Power: 3000W
• Battery Voltage: 24V
• Max PV Input: 4000W / 450V VOC
• MPPT Range: 120–400V
• Charging Amps: 80A (PV), 40A (AC)
• Weight: 17.6 lbs
• Remote Monitoring: Optional Wi-Fi module

Have more questions? Join the discussion at DIYsolarbills.com and explore what other solar enthusiasts are doing with the PowMr 3000W.
