Inside the Powerhouse: A Complete Teardown of the Bluetti AC200L Portable Power Station

Portable power stations have surged in popularity, especially among off-grid enthusiasts, campers, and homeowners seeking energy resilience. One of the most revered among them is the Bluetti AC200L—a 2400-watt power station known for its robust build, clean design, and impressive 2048Wh battery capacity. But what really lies beneath the surface of this power-packed device?

In this article, I dive deep—literally—into the inner workings of the Bluetti AC200L. This is not just a teardown for the sake of curiosity, but an insightful exploration of design, components, and why quality matters in portable power systems.

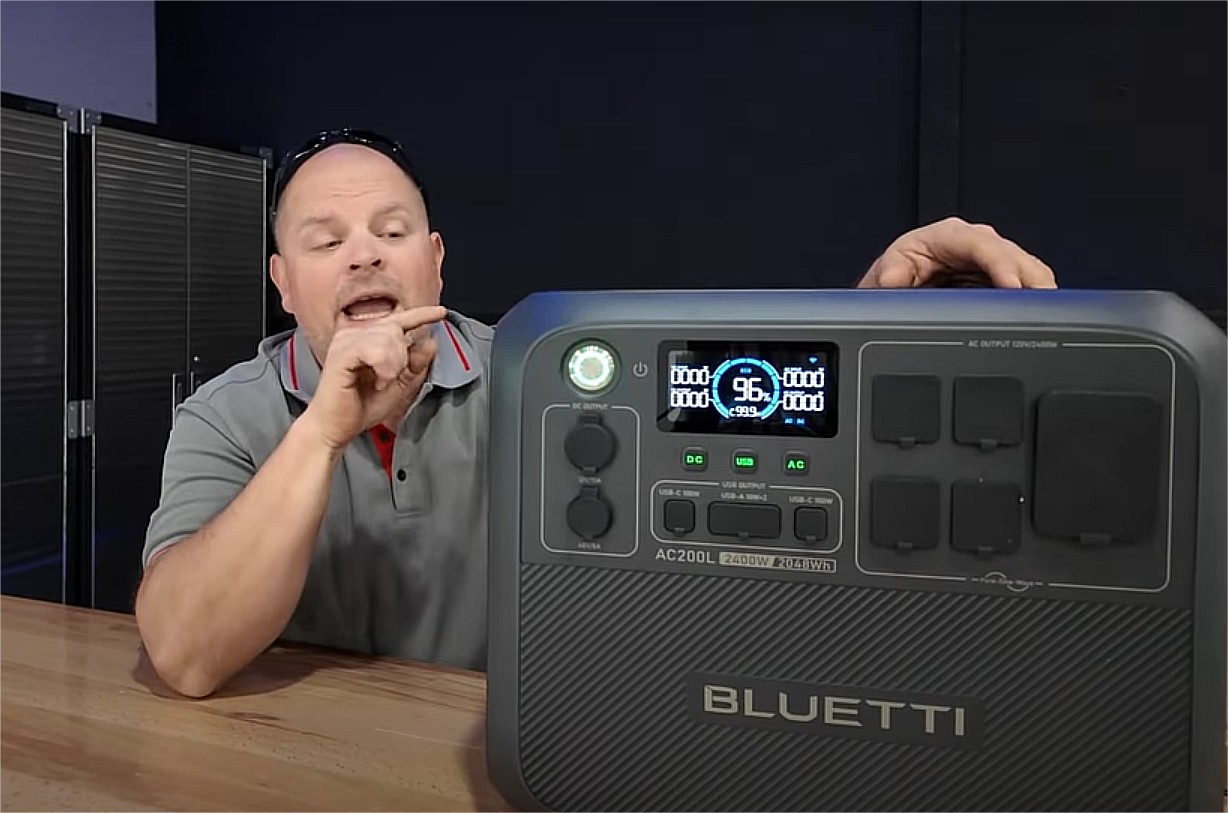

Before cracking it open, let’s take a quick look at what makes the Bluetti AC200L so admired:

• 2400W continuous power output
• 2048Wh battery capacity
• Multiple AC and DC outputs
• Efficient solar input compatibility
• Advanced Battery Management System (BMS)

It’s a well-rounded device—but what about the engineering behind it? Let’s find out.

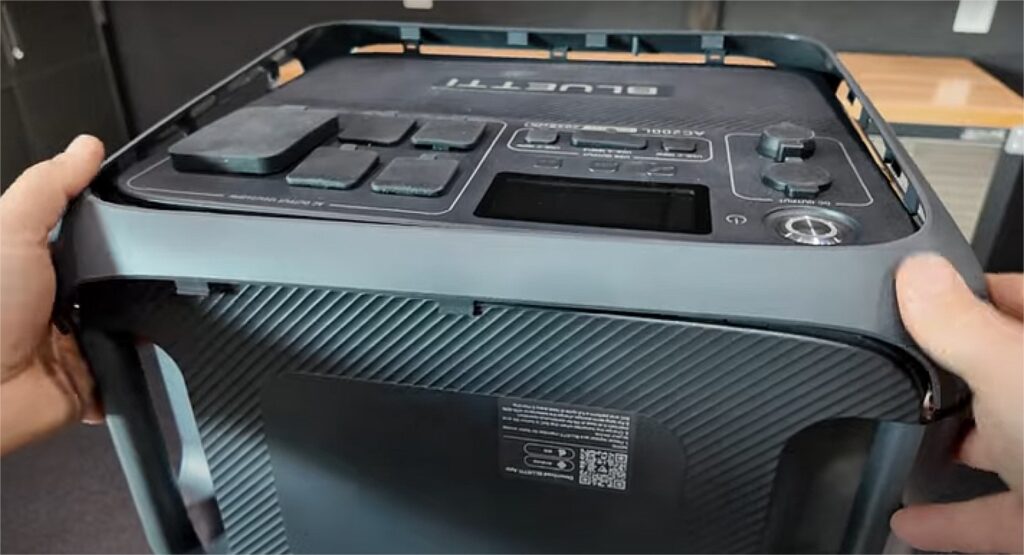

The teardown began with removing the front and back panels. The process wasn’t documented step-by-step to avoid redundancy, but here are some key observations:

• USB Port on the Top: Likely a diagnostics port used for servicing—hidden from users, but handy for technicians.
• Protective Housing: Sturdy plastic components surround the internals. These not only support the structure but act as electrical insulators and shields against interference.
• Cooling Fans: Strategically placed to keep heat-sensitive components at optimal temperatures.

A time-lapse revealed that disassembling such a device involves patience, careful unplugging of connectors, and understanding the internal layout.

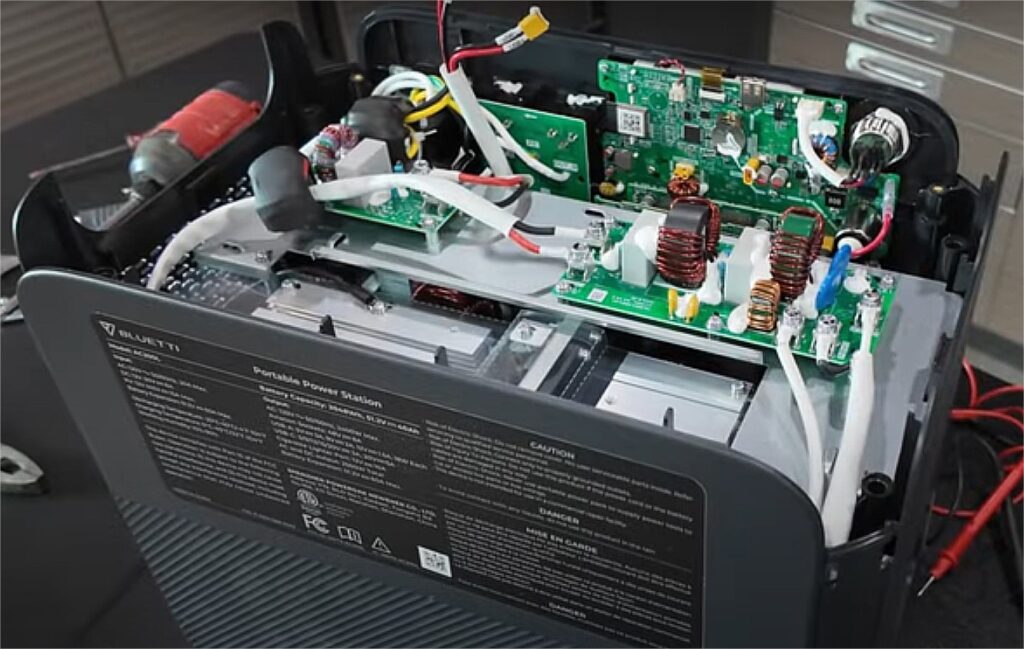

Once inside, the real stars of the show came into focus. The Bluetti AC200L is a symphony of advanced circuitry and efficient design.

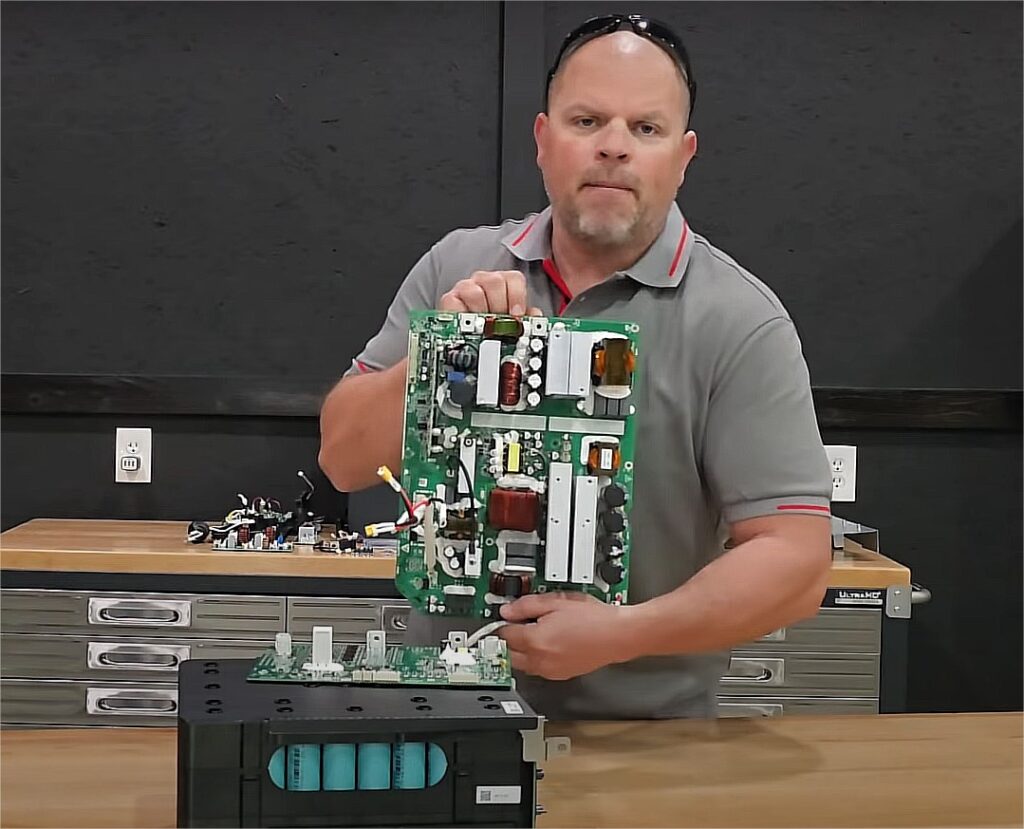

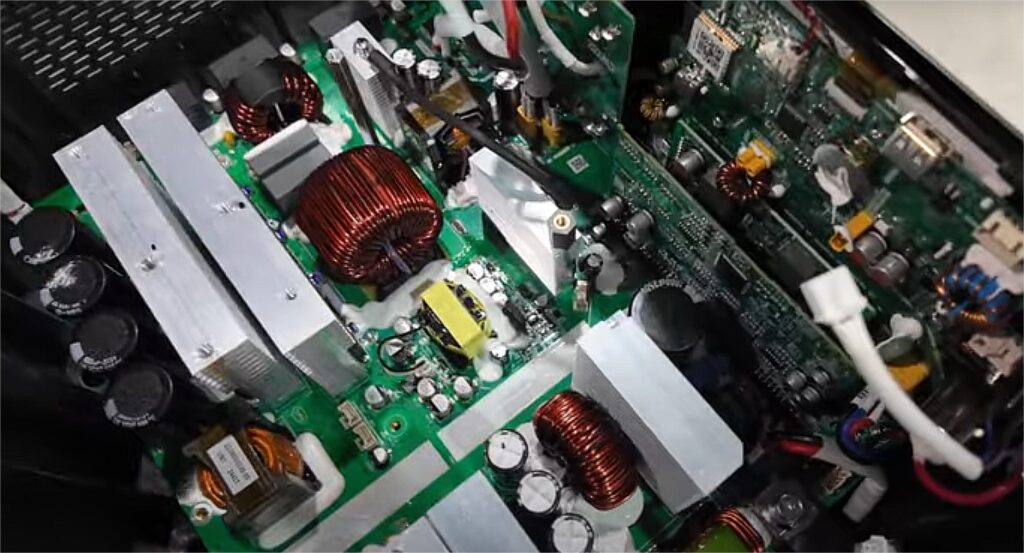

1. Inverter and Circuit Boards

The inverter is central to converting DC power from the battery into usable AC power.

• Main Inverter Board: Capable of a continuous 2400W output.
• Charging Filter Board and Output Filter Board: Help smoothen current and reduce electrical noise.
• AC Outlet Control Board: Manages load distribution across AC ports and the 30A outlet.

The inverter’s design shows a focus on safety, efficiency, and modular repairability—features that DIY solutions often lack.

2. Battery Pack and Configuration

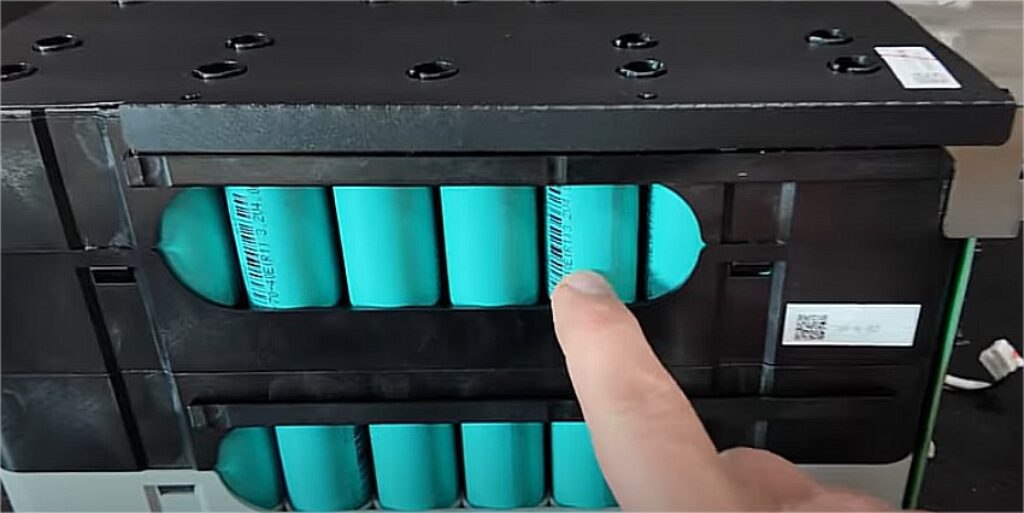

The Bluetti AC200L uses cylindrical cells rated at 3.2V and 4Ah each. Here’s how they’re arranged:

• 80 cells on the top + 80 on the bottom
• 16 cells in series to create 51.2V at 4Ah
• Repeated 5 times in parallel to get 40Ah

Final output: 51.2V × 40Ah = 2048Wh capacity

Though Bluetti has another model (the AC200P) that uses prismatic cells for a more compact design, the AC200L’s cylindrical cells provide a sturdy and well-ventilated battery structure.

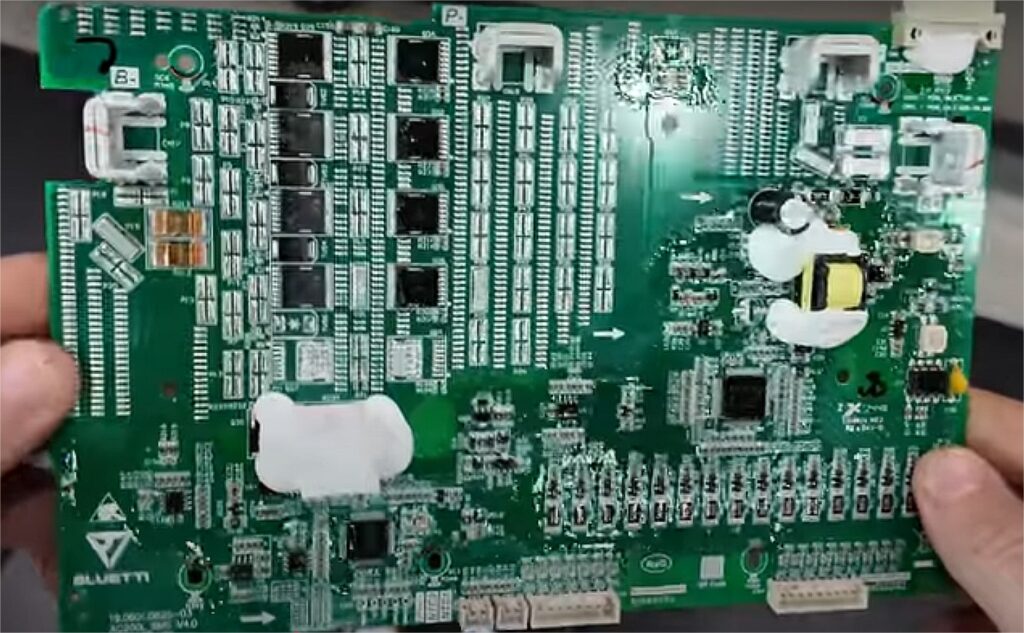

Understanding the BMS is key to appreciating the safety and intelligence behind this power station.

• Protects against overcharging, deep discharge, and temperature extremes
• Ensures balanced charging of individual cells
• Adds a layer of safety that DIY setups often overlook

Although the exact manufacturer of the BMS isn’t confirmed (despite a QR code on it), Bluetti’s branding indicates proprietary or at least custom-integrated technology. During real-world use, the BMS performed flawlessly, safeguarding the battery under various conditions.

Let’s talk about build quality—often a decisive factor in performance and longevity.

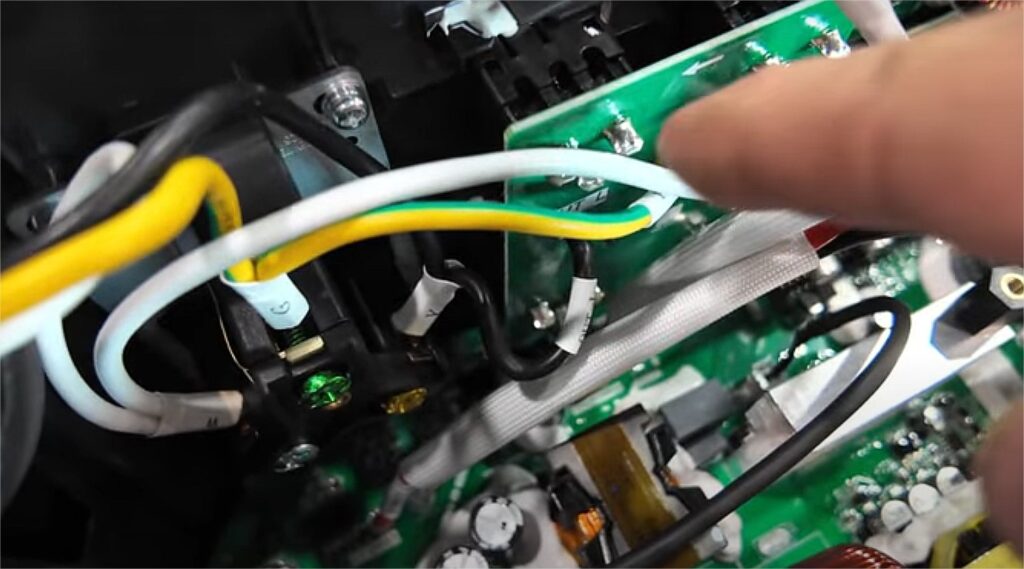

• Battery Connectors: Pure copper, tin-plated, with relief crimps for heat and vibration resistance.
• Casing and Panels: High-grade plastic with anti-interference shielding plates.
• Wiring and Mounts: Thoughtfully laid out for serviceability and protection.

These might seem like small touches, but they ensure reliability over years of use—especially in rugged or mobile environments.

Many DIYers love to build their own battery backup systems, but the teardown of the AC200L highlights why that might not always be wise:

• Professional Grade Safety Features: BMS, thermal sensors, shielding plates, and circuit protection.
• Compact, Space-Saving Design: Hard to replicate without access to custom-molded cases and integrated boards.
• Time vs Value: Sourcing, assembling, and testing a DIY unit to match Bluetti’s quality may not save you money—or peace of mind.

Key Takeaway: If you want professional-grade performance, going with a trusted manufacturer like Bluetti makes more sense, especially for critical applications like home backup or off-grid use.

This teardown of the Bluetti AC200L offered more than just a look inside a high-end portable power station—it gave us a blueprint of quality engineering and smart design.

Here’s what we learned:

• The AC200L is a premium, carefully constructed device.
• Every component—from the inverter to the BMS—is built with safety and efficiency in mind.
• The battery architecture is robust and intelligently laid out.
• It’s almost impossible to recreate this system as a DIY project without sacrificing quality or safety.

If you’re stepping into solar-powered living or off-grid preparedness, Bluetti’s power stations are worth every penny.

• 2400W continuous power output with multiple ports
• 2048Wh capacity packed in a smart footprint
• Safety-first approach with a robust BMS
• Excellent build quality with high-grade connectors
• Trusted brand support and scalability with ESS systems

Whether you’re a curious techie, a DIY enthusiast, or someone serious about energy independence, the Bluetti AC200L offers a reliable, safe, and professionally engineered solution.
